Digital controller
Adjustable shelves

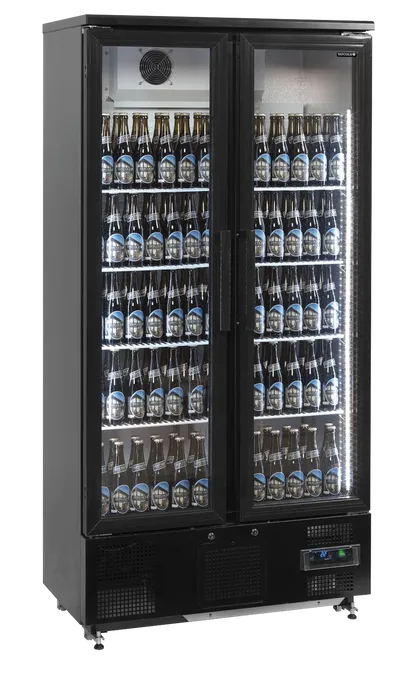

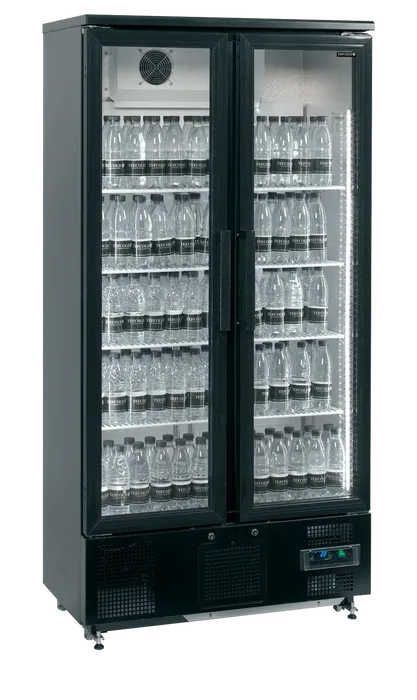

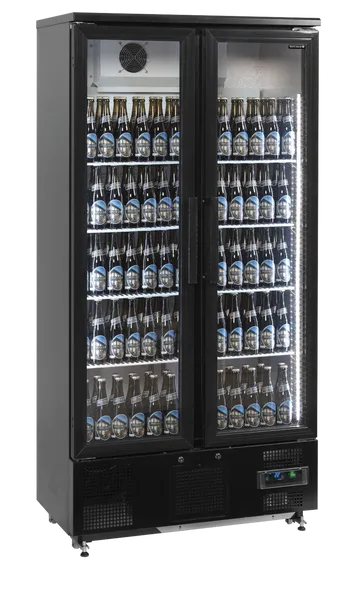

Upright Back Bar
EM500
Item no.: 31572
Brand: Elstar
- Fully automatic
- Fan assisted cooling
- Lock
- Adjustable shelves
- Adjustable feet
- LED interior light with switch
- Digital controller and temperature display
- Door not reversible
- Replaceable door gasket
- Next day delivery available on product
- Unpack & Position£ 40.00
- Remove & Dispose£ 130.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight139 / 125 kg
- Total Display Area0.85 m²
- Temperature Range+2 to +8 °C
- Climate Class4
- Gross / Net Volume600 / 490 l
Design and Material
- Exterior FinishBlack
- Interior FinishHammered Aluminium
- Door Number & Type2 hinged glass doors
- Max load on Shelves196 kg/m²
- Shelf Dimensions420*337
- Shelves Number & Type8 wire shelves
- Interior LightLED
Cooling and Functions
- Type of DefrostAutomatic, electric
- RefrigerantR600a
- Refrigerant Charge120 g
- Thermometer
Power and Consumption
- Energy ClassB
- EPREL No494415
- Max Ambient30°C at 55% RH
- Annual Energy Consumption1095 kWh/year
- Energy Consumption4.38 kWh/24h
- EEI29 %
- Power13 Amp
- Input Power250 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level56 dB(A)
Dimensions
- External Dimension (WxDxH)920 x 520 x 1872 mm
- Packed Dimension (WxDxH)975 x 570 x 2028 mm
- 40ft Container Load 48 pcs
- GTIN / EAN5708181991623
- Product Group - Delivery servicesGroup 3
- Internal Dimension (WxDxH)855 x 424 x 1437 mm
Downloads
Description
Spare parts
- 02Item no. 13656Junction Box
- 03
Item no. 11728Compressor HPKD190A R600 - 04Item no. 32498Condenser Fan
- 05Item no. 32499Basket Guard Grill
- 06
Item no. 32474Condenser - 07
Item no. 32500Shelf. - 08Item no. 32476Rail For Shelves
- 09
Item no. 15082Shelf Clip - 10
Item no. 32477Thermostat Box Cover - 11Item no. 32478Thermostat Box Support
- 12Item no. 32479Thermostat Box
- 13
Item no. 32480Thermostat Cover - 14
Item no. 32481Front Panel Support - 15
Item no. 10683Lock - 16
Item no. 32501Front Panel - 17
Item no. 14060Thermostat XR02CX 2 Probe Blue - 18
Item no. 13754Main Switch - 20Item no. 32490Door Handle
- 21
Item no. 32485Top Hinge Right - 22
Item no. 32502Top Hinge Left - 23
Item no. 32486Bottom Hinge Axis Jacket - 24Item no. 32503Glass door Right
- 25
Item no. 12937Spring Hinge - 26
Item no. 32488Bottom Hinge Right - 27Item no. 32504Door Gasket
- 29Item no. 32505Glass Door Left/Right
- 30Item no. 32491Evaporator Fixer
- 31
Item no. 32506Evaporator - 32Item no. 32507Back Support For Shelves
- 33
Item no. 14612Front Roller - 34Item no. 32493Water Pan
- 35
Item no. 14606Back Roller - 36Item no. 32508Compressor Grill
- 37Item no. 32509Middle Post
- 38Item no. 32496LED Strip
- 39Item no. 32495Evaporator Fan Support
- 40
Item no. 13318Cond./Evap. Fan Rah1238B - 41
Item no. 14579Feet M8 - 43
Item no. 32510LED Power Supply
