Digital controller
Frameless glass doors

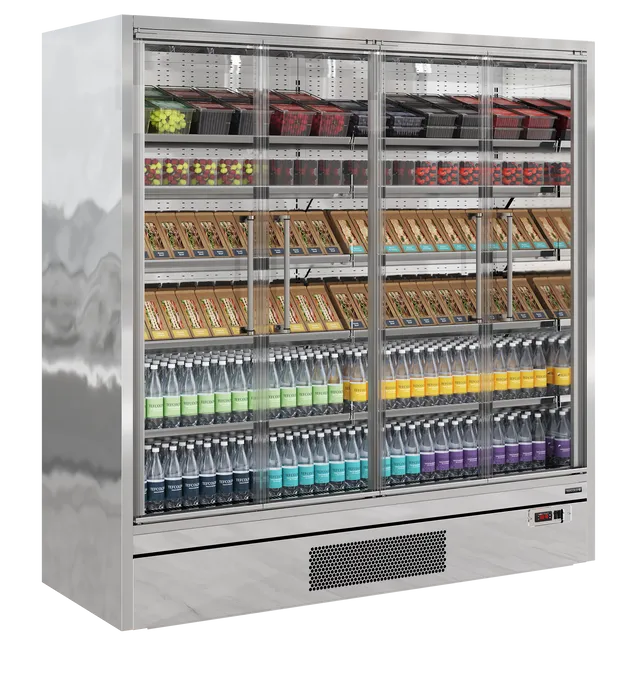

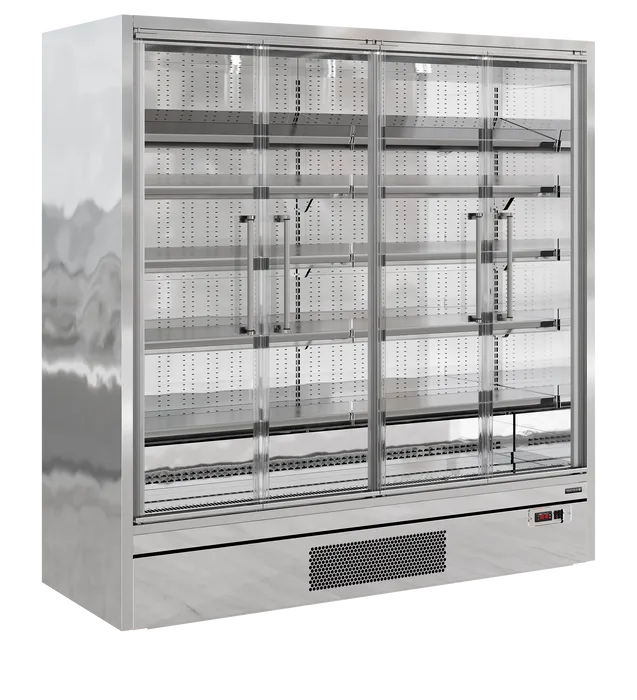

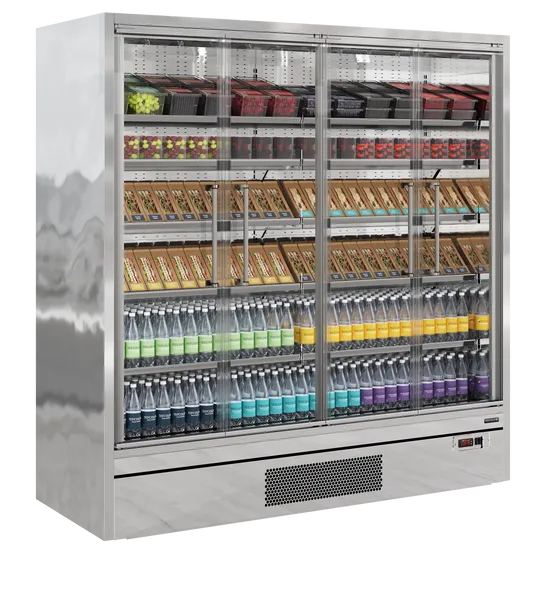

Multideck With Doors
Galaxy+ GP20FGD SS
Item no.: 46466
This price is available until 31st May 2025, when you place your order directly through our website only.
- Fully automatic, fan assisted cooling
- Internal vertical & horizontal LED light
- Solid 40 mm endwalls with mirrored interior
- Frameless hinged double glazed self closing doors
- 5 Adjustable shelves, max weight 160kg/sq metre
- Shelves can be flat or angled to 7° or 14°
- EPOS Ticket strips & shelf risers
- Suitable for fresh meat
- Can be multiplexed with kit (POA)
- Door widths match on G14 & G26 & on G10 & G20
- Delivered without handles and rear stand-offs attached, will fit through 750mm door
- Next day delivery available on product
- Unpack & Position£ 141.00
- Remove & Dispose£ 162.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Temperature Range-1 to +5 °C
- Climate Class3
- Gross / Net Weight470 / 439 kg
- Gross / Net Volume2165 / 943 l
- Total Display Area2.87 m²
Design and Material
- Feet / Legs6 adjustable feet
- Exterior FinishMirror Stainless Steel
- Interior FinishMirror Stainless Steel
- Interior LightLED
- LockNo
- Door Number & Type4 hinged glass doors
- Door ReversibleNo
- Shelves Number & Type5 adjustable
- Shelf ColorStainless steel
- Shelf Dimensions938x400mm
- Max load on Shelves160 kg/m²
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge150 g
- Thermometer
Power and Consumption
- Energy ClassB
- Max Ambient25°C at 60% RH
- Energy Consumption5.47 kWh/24h
- Annual Energy Consumption1997 kWh/year
- Power13 Amp
- Input Power829 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level55 dB(A)
Dimensions
- Internal Dimension (WxDxH)1875 x 544 x 1562 mm
- External Dimension (WxDxH)1955 x 740 x 2040 mm
- Packed Dimension (WxDxH)2000 x 770 x 2320 mm
- 40ft Container Load 12 pcs
- GTIN / EAN5708181726218
- Product Group - Delivery servicesGroup 4A
Downloads
Description
Spare parts
- 002Item no. 44854Panoramic end wall glass h:2005 mm
- 003
Item no. 42199LED Tube T8 L=1200mm 20W - 003Item no. 44855Canopy T8 led tube 1200 mm OSRAM red color
- 004Item no. 46989Top back panel 938mm H: 2005 SS
- 005Item no. 42338Shelf LED Kit SS 938mm
- 005Item no. 42341Shelf LED Bar 4000K 938mm
- 005Item no. 42342Shelf LED Bar Red 938mm
- 006Item no. 43921Hook for Pin Bar
- 007Item no. 44867938 mm supporting bar for hook and hanging profile
- 008Item no. 44865Hanging profile 400 mm
- 009Item no. 44868Shelf 400 mm plexi divider d:740
- 010Item no. 46915Shelf SS
- 011Item no. 46857Shelf bracket 400mm SS
- 012Item no. 44031Shelf Riser Plexi 938
- 013Item no. 51401Plastic Shelf Ticket Strip Clip
- 013Item no. 67386Shelf Price Tag Holder w/ Bracket L=938
- 015Item no. 46900Base deck for d:740 w:938 mm module SS
- 016Item no. 46958Air return grill 1875 mm module SS
- 017Item no. 42153Adjustable Feet
- 018Item no. 46959Front panel for 1875 mm module SS
- 020Item no. 44912Base deck plexi divider 320 mm d:740
- 021Item no. 44962Door bottom hinge left
- 021Item no. 44963Door bottom hinge right
- 023Item no. 44914Plexi glass cover for Bottom grill
- 024Item no. 44964Vertical Door LED 4000 K H:2005 Right/Left Black
- 024Item no. 44965Vertical door led light red color h:2005- each
- 025Item no. 45368Door Handle Silver
- 027Item no. 46912Blok end wall right d:740mm h:2005 mm SS
- 027Item no. 46962Blok end wall left d:740mm h:2005 mm SS
- 029Item no. 44966Door top hinge (Galaxy+ soft close)
- A1Item no. 449751875 module evaporator
- A2Item no. 39880Galaxy Evaporator fan
- A3Item no. 44932Compressor Embraco NT6224U (with terminal box) module for 1875 mm
- A4Item no. 42233Condenser Fan Motor Reversible
- A5Item no. 42220Condenser
- A6Item no. 44933Copper drier 50 gr
- A7Item no. 44978Electrical connection box
- A8Item no. 42215Water Tray Heater
- A9Item no. 42212Sponge Cloth
- A10Item no. 42260Digital Controller XR20CH
- A11Item no. 42201Switch On/Off
- A12Item no. 42202Light Switch
- A13Item no. 43210Capillary tubes
- A13Item no. 44979Capillary for 1875 and 2500 module Ø1,2 mm L:152 cm
