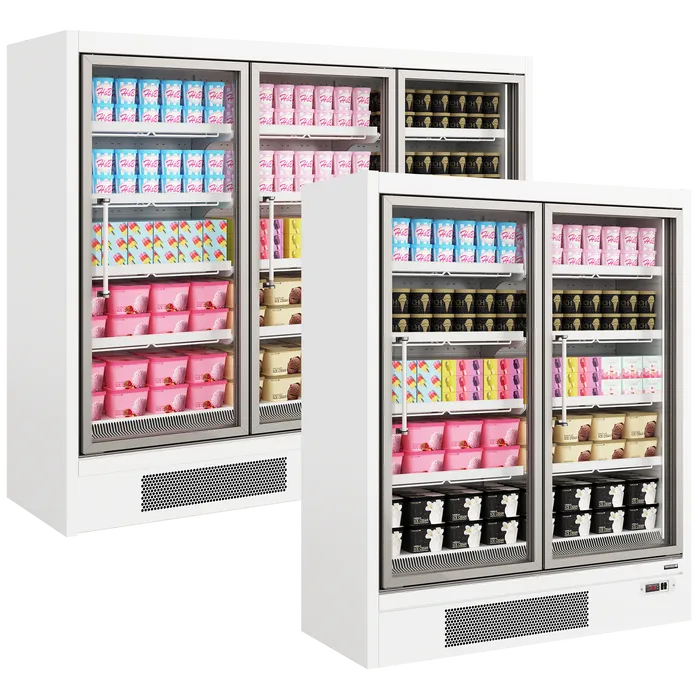

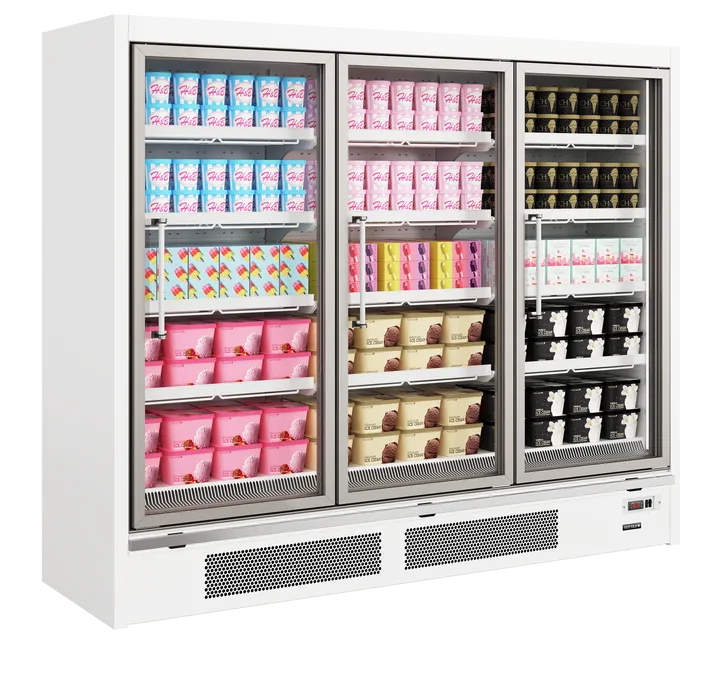

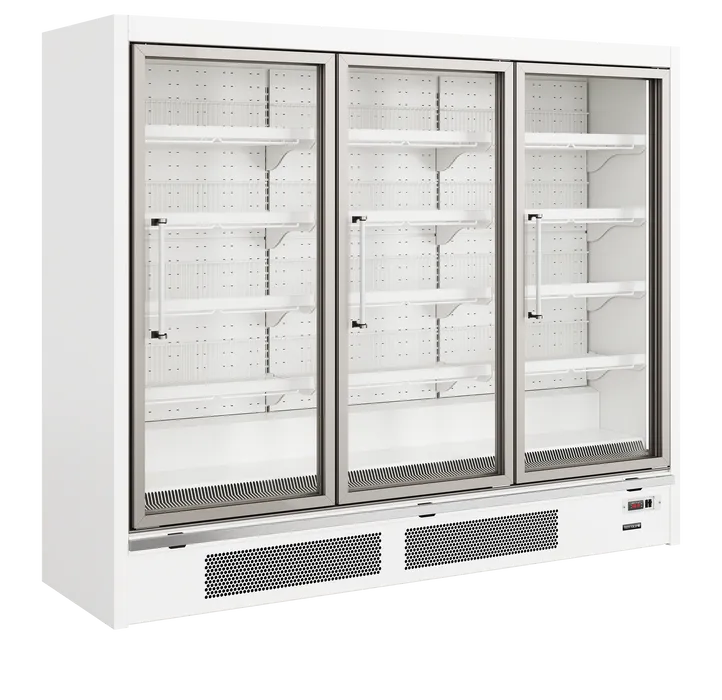

Glass Door Freezer
Galaxy+ GPF3D White
Item no.: 48601
Brand: TEFCOLD
- Fully automatic
- Fan assisted cooling

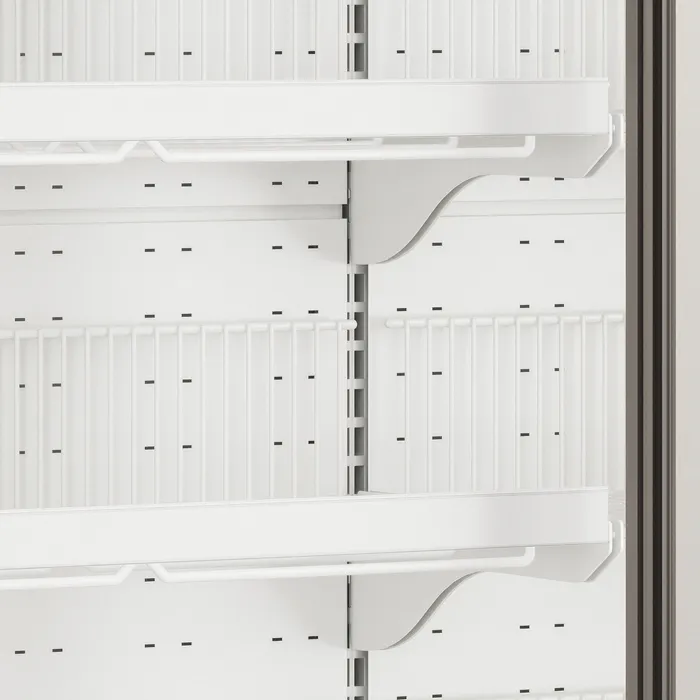

- Adjustable shelves
- Adjustable feet
- Vertical LED interior light with switch
- Thermometer
- Replaceable door gasket
- Epos Ticket Strips
- Heated glass door to prevent condensation
- Triple glazed insulated glass
- Next day delivery available on product
- Unpack & Position£ 190.00
- Remove & Dispose£ 242.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight488 / 463 kg
- Total Display Area3.2 m²
- Temperature Range-21 to -18 °C
- Climate Class3
- Gross / Net Volume/ l
Design and Material
- Exterior FinishWhite
- Interior FinishWhite
- Door Number & Type3 hinged heated glass doors
- Shelves Number & Type15 adjustable
- Max load on Shelves160 kg/m²
- Shelf ColorWhite
- Shelf Dimensions5x 400mm
- Feet / LegsAdjustable Feet
- Interior LightLED
Cooling and Functions
- Type of ControllerElectronic
- Type of DefrostAutomatic, hot gas
- Refrigerant Charge2x150 g
- RefrigerantR290
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No2291845
- Max Ambient25°C 60% RH
- Annual Energy Consumption12921 kWh/year
- Energy Consumption35.4 kWh/24h
- EEI46.5 %
- Power16 Amp
- Input Power2212 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level65 dB(A)
Dimensions
- External Dimension (WxDxH)2442 x 740 x 2035 mm
- Packed Dimension (WxDxH)2600 x 850 x 2390 mm
- 40ft Container Load 8 pcs
- GTIN / EAN5708181730246
- Product Group - Delivery servicesGroup 5A
- Internal Dimension (WxDxH)2342 x 435 x 1477 mm
Downloads
Description
Spare parts
- 01Item no. 52926Solid End Wall Right D740 H2035 White
- 01Item no. 52927Solid End Wall Left D740 H2035 White
- 02Item no. 52928Multiplexing Panel D740 H2035 White
- 03Item no. 52930Top Back Panel W2343 H2035 White
- 04Item no. 52932Bottom Back Panel W2343 H2035 White
- 05Item no. 52934Ceiling Panel W2343 H2035 White
- 06Item no. 52936Base Plate W2343 H2035 White
- 07Item no. 52938Base Shelf Price Tag Holder W2343 White
- 08Item no. 52939Base Wired Shelf White
- 09Item no. 52968Base Shelf Plexi Divider
- 10Item no. 52970Wired Shelf 400mm W2343 White
- 11Item no. 52971Shelf Bracket Right D740 White
- 11Item no. 52972Shelf Bracket Left D740 White
- 12Item no. 52973Shelf Divider White
- 13Item no. 52985Shelf Price Tag Holder W2343
- 16Item no. 52987Air Return Grill W2343 White
- 17Item no. 52993Air Return Grill Support W2343
- 18Item no. 42153Adjustable Feet
- 19Item no. 52995Bumper SS W2343
- 20Item no. 52997Front Panel Trim W2343 White
- 21Item no. 52999Front Panel W2343 White
- 22Item no. 53008Display Plexi Cover
- 23
Item no. 42199LED Tube T8 L=1200mm 20W - 23Item no. 44855Canopy T8 led tube 1200 mm OSRAM red color
- 24
Item no. 45367Door Handle White - 25Item no. 53011Door w/ Heater Right W2343 H2035 White
- 25Item no. 53012Door w/ Heater Left W2343 H2035 White
- 26Item no. 53021Bottom Left Hinge
- 26Item no. 53022Bottom Right Hinge
- 27Item no. 53023Top Right Hinge
- 27Item no. 53024Top Left Hinge
- 28Item no. 53025Gasket Door w/ Heater
- 29Item no. 53027Canopy Trim White
- 30Item no. 44865Hanging profile 400 mm
- 31Item no. 53032Hook For Price Holder Ø 5mm
- 32Item no. 53034Supporting Bar For Hook And Hanging Profile W2343
- 33Item no. 53036Evaporator Fan Cover W2343
- 34Item no. 53037Drain Pipe Clamp
- 35Item no. 53038Drain Plastic
- 36Item no. 53039Plastic Drain Fixing Nut
- 37Item no. 53040Spiral Pipe
- A1Item no. 53042Evaporator W2343
- A2Item no. 45252Evap Fan
- A3Item no. 53043Compressor EMBRACO NEX2180UB
- A4Item no. 42233Condenser Fan Motor Reversible
- A5Item no. 42219Condenser
- A6Item no. 44933Copper drier 50 gr
- A7Item no. 44978Electrical connection box
- A8Item no. 53045Condensate Tray W2343
- A9Item no. 53047Sponge Cloth W2343
- A10Item no. 44939Digital controller XR70CH
- A11Item no. 42201Switch On/Off
- A12Item no. 42202Light Switch
- A13Item no. 53048Capillary 1,2mm x 1380mm
- A14Item no. 42231Probe Dixell NTC 3MT
- A14Item no. 53049Probe Dixell NTC 1,5MT
- A15Item no. 53050Electrical Box
- A16Item no. 53051Electrical Box Cover
- A17Item no. 53052EMC Filter
- A18Item no. 53053Relay
- A19Item no. 53054Solenoid Valve
