Digital controller
Strong handles
Low-Height Multideck

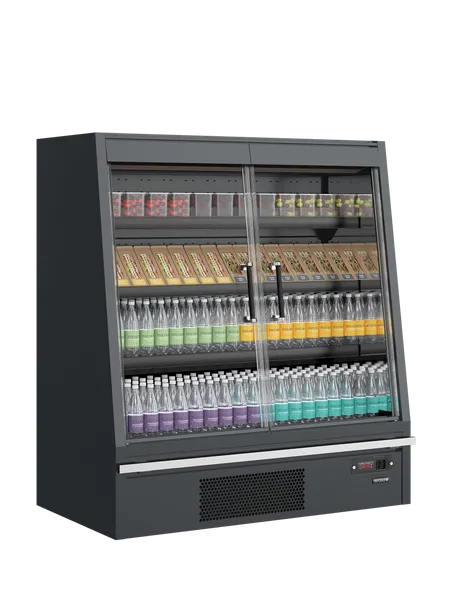

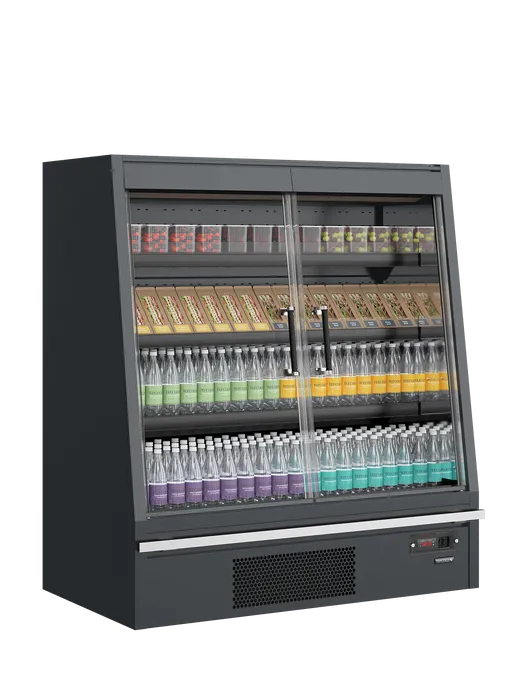

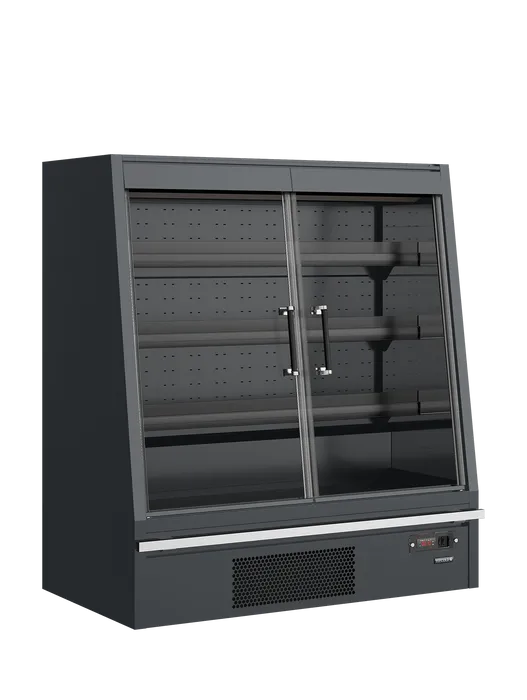

Galaxy+ GPL14FGD A
Item no.:71819
Brand:TEFCOLD
- Colour is anthracite RAL7016
- Frameless glass doors for great product visibility
- Excellent energy efficiency
- Adjustable shelves (can be tilted)
- Solid 40 mm endwalls with mirrored interior
- LED interior light
- Ventilated cooling
- Can be multiplexed with kit (POA)
- Ticket strip and acrylic front riser as standard
- Next day delivery available on product
- Unpack & Position£ 40.00
- Remove & Dispose£ 130.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight219.6 / 202.6 kg
- Gross / Net Volume797 / 360 l
- Total Display Area1.28 m²
- Temperature Range-1 to +5 °C
- Climate Class3
Design and Material
- Exterior FinishAnthracite RAL7016
- Interior FinishAnthracite RAL7016
- Door Number & Typehinged glass doors
- Shelves Number & Type3 adjustable
- Shelf ColorAnthracite
- Shelf Dimensions1250x250/300/350mm
- Max load on Shelves160 kg/m²
- Feet / Legs4 adjustable feet
- Interior LightLED
Cooling and Functions
- Type of ControllerElectronic
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge108 g
- Thermometer
Power and Consumption
- Energy ClassB
- EPREL No1610930
- Energy Consumption3.1 kWh/24h
- Annual Energy Consumption1132 kWh/year
- EEI11.8 %
- Input Power583 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level55 dB(A)
Dimensions
- 40ft Container Load 22 pcs
- GTIN / EAN5708181761677
- Product Group - Delivery servicesGroup 3
- External Dimension (WxDxH)1330 x 740 x 1500 mm
- Internal Dimension (WxDxH)1250 x 350 x 1053 mm
- Packed Dimension (WxDxH)1500 x 810 x 2350 mm
Downloads
Description
Spare parts
- 01Item no. 72053Panoramic end wall right d:740mm h:1500mm A
- 01Item no. 72054Panoramic end wall left d:740mm h:1500mm A
- 02Item no. 49283Panoramic end wall glass h:1500 mm
- 03Item no. 72057Blok end wall left d:740mm h:1500 mm A
- 03Item no. 72075Blok end wall right d:740mm h:1500 mm A
- 04Item no. 72055Block end wall with mirror right d:740 h:1500
- 04Item no. 72056Block end wall with mirror left d:740 h:1500
- 05
Item no. 42199LED Tube T8 L=1200mm 20W - 05Item no. 44855Canopy T8 led tube 1200 mm OSRAM red color
- 07Item no. 67822Cable for Undershelf Lighting w:938 / w:1250
- 09Item no. 42339Shelf LED Bar 4000K 1250mm
- 09Item no. 42340Shelf LED Bar Red 1250mm
- 10Item no. 42096Air Diffuser
- 11Item no. 72077Top back panel 1250mm h: 1500 A
- 12Item no. 72079Bottom back panel 1250 mm Grey
- 13Item no. 72081Base deck for d:740 w:1250 mm module A
- 14Item no. 72083Base deck price tag holder W1250 A
- 15Item no. 68909Price tag for base W1250
- 16Item no. 72090Shelf 250mm d:740 w:1250 A
- 16Item no. 72091Shelf 300mm d:740 w:1250 A
- 16Item no. 72092Shelf 350mm d:740 w:1250 A
- 16Item no. 72093Shelf 400mm d:740 w:1250 A
- 16Item no. 72094Shelf 450mm d:740 w:1250 A
- 16Item no. 72095Shelf 500mm d:740 w:1250 A
- 17Item no. 72096Shelf bracket 250mm A
- 17Item no. 72097Shelf bracket 300mm A
- 17Item no. 72098Shelf bracket 350mm A
- 17Item no. 72099Shelf bracket 400mm A
- 17Item no. 72100Shelf bracket 450mm A
- 17Item no. 72101Shelf bracket 500mm A
- 18Item no. 67830Perspex Riser 2 x 1250 mm
- 19
Item no. 48230Shelf Price Tag Holder L=1250 - 20Item no. 72103Shelf support L: 1250mm
- 21Item no. 72105Air return grill 1250 mm A
- 22Item no. 72107Air Return Grill Support W1250
- 23Item no. 42153Adjustable Feet
- 24Item no. 69194SS Bumper Support Clips
- 25Item no. 49372Front panel trim for SS bumper W1250 SS
- 25Item no. 72109Front panel trim for SS bumper W1250 A
- 26Item no. 72113Front panel W1250 A
- 27Item no. 44914Plexi glass cover for Bottom grill
- 28Item no. 71563Vertical door LED 4000K for h:1500
- 28Item no. 71564Vertical door LED Red for h:1500
- 29Item no. 45366Door Handle Grey
- 30Item no. 71574Hinged door with transparent spacer R W1250
- 30Item no. 71575Hinged door with transparent spacer L W1250
- 33Item no. 67840Door Top Hinge Right
- 33Item no. 67841Door Top Hinge Left
- 34Item no. 72117Canopy Trim 1250mm A
- 35Item no. 67854Vertical Door Gasket h: 1500
- 36Item no. 67857Horizontal Door Gasket w: 1250
- 37Item no. 67859Top and Bottom Body Gasket w: 1250
- 38Item no. 72121Fan Cover Sheet w: 1250 A
- 39Item no. 53037Drain Pipe Clamp
- 40Item no. 53038Drain Plastic
- 41Item no. 53039Plastic Drain Fixing Nut
- 42Item no. 53040Spiral Pipe
- 43Item no. 47351Transformer
- 44Item no. 69191LED Holder Set for Single LED
- 101
Item no. 449741250 module evaporator - 102Item no. 45252Evap Fan
- 103Item no. 67814Compressor Embraco EMC 3119 U
- 104Item no. 42233Condenser Fan Motor Reversible
- 105Item no. 67818Micro channel condenser EU18
- 106Item no. 71567Dryer
- 107Item no. 44978Electrical connection box
- 108Item no. 72125Condensate water tray for w:1250
- 109Item no. 71606Sponge for w:1250
- 110Item no. 42260Digital Controller XR20CH
- 110Item no. 44939Digital controller XR70CH
- 110Item no. 67823Digital controller XR60CH
- 110Item no. 67824Digital controller monitoring card for Dixell
- 111Item no. 44940On-off switch
- 112Item no. 42271Light Switch
- 113Item no. 67826Capillary Ø0.8 - 70 cm
- 114Item no. 42231Probe Dixell NTC 3MT
- 114Item no. 42232Probe Dixell NTC 6MT
- 115Item no. 53050Electrical Box
- 116Item no. 53051Electrical Box Cover
- 117Item no. 53052EMC Filter
- 118Item no. 53053Relay
