Scooping basket option
Scoop wash option

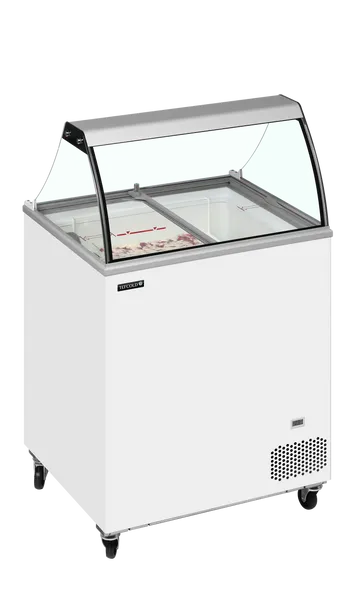

Scoop Ice Cream Display w/Basket
IC201SC + CANOPY
Item no.: 53135 (Substitution for 23437 IC200SC + CANOPY )
- Curved glass canopy
- Flat sliding glass lids with lock
- Storage under baskets
- Castors with brake
- Climate class 5 for high performance in warm surroundings
- Accepts plastic napoli size tubs. Stainless napoli pans not required
- Next day delivery available on product
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Temperature Range-24 to -14 °C
- Climate Class5
- Gross / Net Weight72.9 / 64.9 kg
- Gross / Net Volume191 / 165 l
Design and Material
- Castors4 wheels, 2 with brake
- Exterior FinishWhite
- Interior FinishWhite painted steel
- Lock
- SneezeGuard
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR600a
- Refrigerant Charge55 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No1672494
- Energy Consumption1.46 kWh/24h
- Annual Energy Consumption534 kWh/year
- Input Power98 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- Internal Dimension (WxDxH)600 x 510 x 655 mm
- External Dimension (WxDxH)720 x 630 x 1250 mm
- Packed Dimension (WxDxH)800 x 750 x 1130 mm
- 40ft Container Load 92 pcs
- GTIN / EAN5708181731939
- Product Group - Delivery servicesGroup 2
Downloads
Spare parts
- 02Item no. 13188Upper Glass Lid With Frame
- 03
Item no. 13038Bottom Glass Lid With Frame - 04
Item no. 10720Lock With Keys - 05
Item no. 13426Evaporator Fan Blade 190/28° - 06Item no. 45491Compressor LK118CY1 R600a 220-240V/50Hz RSCR
- 07Item no. 54349Fan Motor
- 08Item no. 34974Fan Motor Foot Sheet H=55mm
- 09
Item no. 14000Thermostat K50B-S3564 Ranco - 12Item no. 54350Condenser
- 15Item no. 11164Louvred Plate Side 505x250
- 18Item no. 38818Dryer
- 19
Item no. 11553Inner Drain Plug - 20
Item no. 11465Drain Plug Outer White - 22Item no. 15772Ice Scraper
- 24
Item no. 14674Wheel With Brake U-Mount - 25
Item no. 14663Wheel W/O Brake U-Mount - 26
Item no. 14653U-Shaped Lock For Wheels - 27
Item no. 13793Thermometer Digital White - 28
Item no. 10734Rubber Cap For U-Lock - 34Item no. 12633Gasket For Curved Glass
- 44
Item no. 11212Plastic Strip For Alu Frame - 51Item no. 10524Curved Front Glass SC
- 53Item no. 10601Right Side Glass Curved
- 54Item no. 10583Left Side Glass Curved
- 55
Item no. 10632Side Glass Holder - 56Item no. 15785Top Profile Serve Over 695 mm
- 57Item no. 15775Left Corner Profile
- 58Item no. 10036Chrome Screw Cover
- 59Item no. 15781Right Corner Profile
- 61Item no. 10075Plastic Washer
- 62
Item no. 10054Internal Washer F. Screw Cover - 63
Item no. 10089Screw For Alu Profile 4,8x19 - 99
Item no. 14718Scoop Ice Basket for Plastic Tubs (1x5 + 1x2,5)
