Internal fan
Strong castors

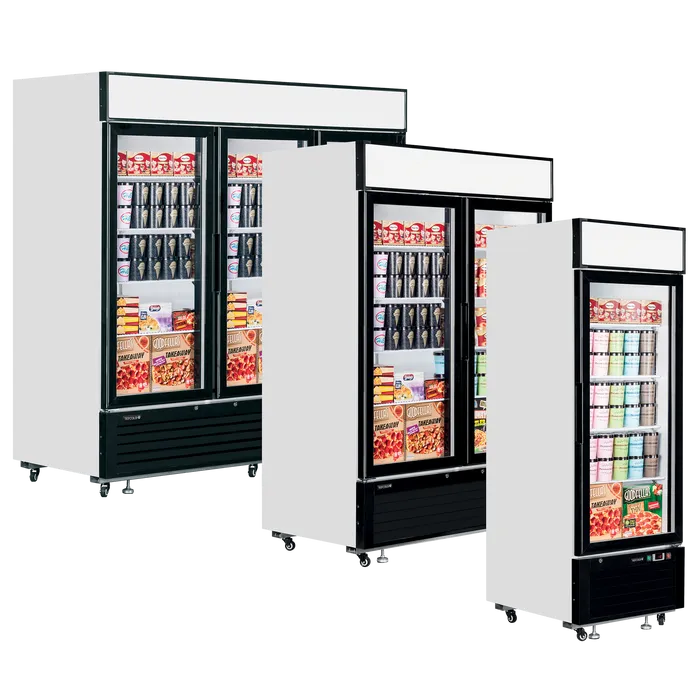

Glass Door Display Freezer
LGF5000
Item no.: 20270
Brand: TEFCOLD
- Fully automatic, fan assisted cooling
- Automatic defrost
- Lock
- Adjustable shelves
- Castors and locking feet
- Self closing doors with stay open feature for ease of loading
- LED interior light with switch (2 LED strips per door)
- Digital controller and temperature display
- Light canopy with switch
- Heated glass door to prevent condensation
- Internal stainless steel base
- Next day delivery available on product
- Unpack & Position£ 40.00
- Remove & Dispose£ 130.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Temperature Range-25 to -14 °C
- Climate Class4
- Gross / Net Weight210 / 190 kg
- Gross / Net Volume1108 / 922 l
- Total Display Area1.38 m²
Design and Material
- Exterior FinishWhite
- Interior FinishWhite
- Interior Light2 x Vertically LED in door frame
- Door Number & Type2 hinged glass doors
- Shelves Number & Type10
- Shelf Dimensions618*622
Cooling and Functions
- Type of CoolingVentilated
- Type of DefrostAutomatic, electric
- RefrigerantR290
- Refrigerant Charge150 g
- Thermometer
Power and Consumption
- Energy ClassC
- EPREL No458608
- Max Ambient30°C at 55% RH
- Energy Consumption12.77 kWh/24h
- Annual Energy Consumption4660 kWh/year
- Power13 Amp
- Input Power1200 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level61 dB(A)
Dimensions
- Internal Dimension (WxDxH)1262 x 640 x 1520 mm
- External Dimension (WxDxH)1382 x 805 x 2065 mm
- Packed Dimension (WxDxH)1430 x 860 x 2210 mm
- 40ft Container Load 22 pcs
- GTIN / EAN5708181991289
- Product Group - Delivery servicesGroup 3
Downloads
Description
Spare parts
- 01
Item no. 33192Front Bottom Panel - 02.1Item no. 21176LH Top Hinge
- 02.2Item no. 33156Screw M6x16
- 02.3Item no. 32344Door shaft sleeve top
- 02.4
Item no. 21064LH Freezer Door (Glass) - 02.5Item no. 33193Door Brake -Left
- 02.6Item no. 21026Door Hinge Bush
- 02.7Item no. 21193Door Stopper for R290 models
- 02.8Item no. 21063RH Freezer Door (Glass)
- 02.9
Item no. 33153Door Gasket - 02.10Item no. 21175RH Top hinge
- 02.11Item no. 21174Lower Left Hand Hinge
- 02.12Item no. 33154Door Stopper-Bottom
- 02.13Item no. 33155Screw M6x8
- 02.14Item no. 21173Lower Right Hand Hinge
- 02.15
Item no. 31249Door Tension Bar - 02.16
Item no. 21196Door LED and Logo LED for LGC500 and LGF5000 - 02.17Item no. 33157Showcase Magnetic Steel
- 03.1
Item no. 21208LH Logo End Cap - 03.2
Item no. 21213Upper Logo Frame (Top Strip) - 03.3
Item no. 21207RH Logo End Cap - 03.4
Item no. 10708LGF-C 5000 Plain Logo 1375mm x 230mm - 03.5Item no. 33194Top Panel Canopy Frame-Bottom
- 03.6Item no. 33158Gate Magnetic Switch
- 03.10Item no. 68795Top Panel Frame - Left
- 03.11Item no. 68806Top Panel Frame-Top
- 03.12Item no. 68796Top Panel Frame - Right
- 03.13Item no. 68807Top Panel
- 03.14Item no. 68808Top Panel Frame-Bottom
- 04.1
Item no. 31261Evaporator R290 models - 04.2
Item no. 33195Evap Left Cover - 04.3
Item no. 33160Evap Left Cover - 04.4
Item no. 33196Middle Air Lane Cover - 04.5
Item no. 33161Evap Right Cover - 04.6
Item no. 33197Evap Right Cover - 04.7Item no. 21157Drain Heater 320mm
- 04.8Item no. 21078Plastic Straight Fitting for Drain
- 04.9
Item no. 21049Evaporator Tray - 04.10Item no. 21167Drain Pan Heater (Beneath Evaporator)
- 04.11Item no. 21077Plastic Elbow Drain Fitting
- 04.12Item no. 33198Drain Pan Foam
- 04.13
Item no. 33199Drain Pan Cover - 04.14Item no. 21224Waterproof Controller Probe R290 versions
- 04.15Item no. 33166Evap Temp Probe
- 04.16Item no. 33164Evap Fan Braket
- 04.17Item no. 68803Evaporator Fan Motor
- 04.18Item no. 68804Evaporator Fan Blade
- 04.19
Item no. 33200Evap Front Cover - 04.20Item no. 47983Evap Fan Motor Cover Black
- 05.1
Item no. 33201Door Post Back Cover - 05.2Item no. 33202Door Post Foam
- 05.3Item no. 21169Centre Mullion Heater
- 05.4
Item no. 33203Door Post Plastic Connector - 05.5
Item no. 33204Door Post Front Cover - 06.1Item no. 33169Pilastor For Shelf
- 06.2
Item no. 15083Shelf Clip - 06.3
Item no. 21235Shelf for R290 and R600a Models after SN 1904010001 - 06.4
Item no. 33205Bottom Shelf - 07.1Item no. 68810Compressor
- 07.2
Item no. 33207High Presure Coil - 07.3Item no. 21098Condenser Fan Motor
- 07.4Item no. 33175Condenser Fan Blade
- 07.5Item no. 33174Condenser Fan Braket
- 07.6Item no. 21046Condensate Tray (290 x 150 x 50) from 05/15
- 07.8
Item no. 33208Connecting Coil to Condenser - 07.9Item no. 68811Condensor
- 07.10
Item no. 21039Condenser (R290 Model) - 07.11
Item no. 10012Dust Filter - 07.13
Item no. 21266Solenoid Valve Coil for R290 versions - 07.14Item no. 21265Solenoid Valve Coil for R290 versions
- 07.15
Item no. 31267Solenoid Valve FDF2A (R290 models) - 08Item no. 21109Levelling Foot (Upright Units)
- 09Item no. 331832" Castor w/o Brake
- 10Item no. 33210Low Presure Coil Back to Comp
- 11Item no. 31296LED Light Switch (Red) R290
- 12Item no. 33186Digital Controller
- 13Item no. 21254Green on / off power switch
- 14Item no. 33182Fastener for Front Bottom Panel
- 15Item no. 33211Back Bottom Barriar
- 17
Item no. 33212Top Frame Cover - 18Item no. 21168Cabinet Frame / perimeter heater
- 19
Item no. 33179Left-Right Frame Cover - 20
Item no. 33213Bottom Frame Cover - 21Item no. 33214Power Supply
- 22Item no. 21206Lock and Key Set
- 23Item no. 21018Controller Housing
- 24Item no. 13840Controller Box Base
- 25Item no. 33216Back Wind Deflector
- 26Item no. 33188Back wind deflector stents
- 27Item no. 33191A drain protection
- 28Item no. 33217Wind Deflector Unit
- 40Item no. 68799Right Door Assembly
- 41Item no. 68822Left Door Assembly
