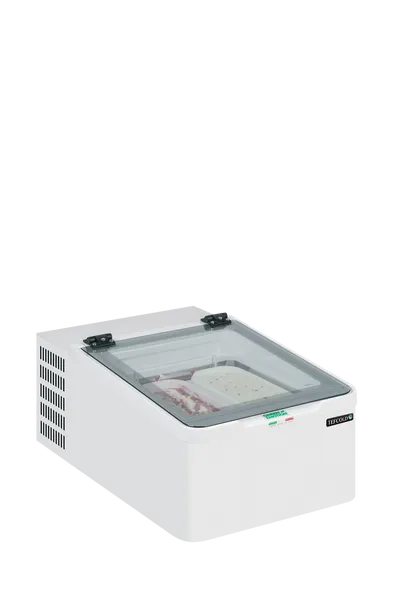

Counter Top Scoop Ice Cream Display

MINI CREAM 2V

Item no.: 20238

  • Accepts Napoli pans (not supplied)
  • Static cooling
  • Adjustable feet
  • Hinged low E glass lid
  • Optional lolly tray

Technical specifications

Measures and Content

  • Total Display Area
    0.12
  • Temperature Range
    -25 to -10 °C
  • Climate Class
    4
  • Gross / Net Weight
    32 / 28 kg
  • Serving Capacity
    2 Napoli Pans (5 L)
  • Storage capacity (under)
    No Under Storage

Design and Material

  • Exterior Finish
    White
  • Interior Finish
    Stainless steel

Cooling and Functions

  • Type of Defrost
    Manual
  • Refrigerant
    R600a
  • Refrigerant Charge
    22 g
  • Thermometer

Power and Consumption

  • Energy Class
    B
  • Max Ambient
    30°C at 55% RH
  • Energy Consumption
    2.87 kWh/24h
  • Annual Energy Consumption
    1047 kWh/year
  • Input Power
    90 W
  • Voltage / Frequency
    220-240/50 V/Hz

Dimensions

  • Internal Dimension (WxDxH)
    364 x 389 x 170 mm
  • External Dimension (WxDxH)
    490 x 790 x 345 mm
  • Packed Dimension (WxDxH)
    590 x 890 x 375 mm
  • 40ft Container Load
    220 pcs
  • GTIN / EAN
    5708181616670
  • Product Group - Delivery services
    Group 1

Downloads

Description

2 scoop counter top ice cream display

Ideal for where space is limited but you want to maximise sales of scooping ice cream. The Mini Cream range from Framec is a counter top 2 or 3 scoop ice cream freezer. The unit holds 5 litre Napoli pans (or optional lolly tray) and comes as standard with hinged low E glass lid and temperature display. An optional stand is also available.

Spare parts

  • 1
    Item no. 32875Thermometer Rectangular L1000 White
  • 2
    Item no. 32876Levelling Foot M8X38
  • 3
    Item no. 32877Acc.Set Cubigel Hly99Aa 220-240V 50Hz Rsir R600a
  • 4
    Item no. 32878Compressor 220-240V 50Hz Rsir R600a
  • 5
    Item no. 32879Bracket Condenser Bundy Holder
  • 6
    Item no. 32880Condenser Wires 6T-6R
  • 7
    Item no. 32881Filter XH9 Entry 5.2 Out 2.75 gr10
  • 8
    Item no. 32882Fan motor 120X120X25
  • 9
    Item no. 32883Plug Cable 3X0,75X2150
  • 10
    Item no. 32884Thermostat K50Bs3498000 Chef 600 N R290a
  • 11
    Item no. 32885Thermostat Knob Whit Arrow
  • 12
    Item no. 32886Glass Lid 460x540x4 Transp. With dotted black edge
  • 13
    Item no. 32887Adjustable Glass Hinge Dolce Vista 6 Black
  • 14
    Item no. 32888Gasket 450X472 Glass Dolce Vista 6 (0048-01) White
  • 15
    Item no. 32889Rear Grid White
