Removable cooling unit for easy service
White LED lighting

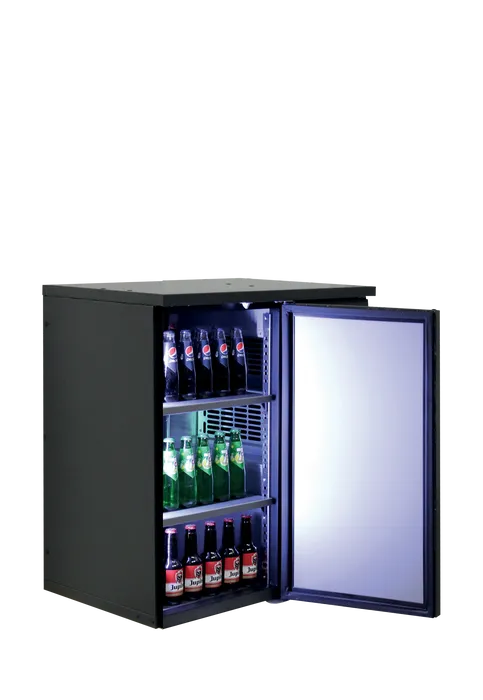

High-end Backbar Cooler
This product is from our high-end SERRCO by TEFCOLD brand. It offers outstanding quality, where every little detail has been considered carefully by industry experts to ensure optimal performance. You will save time with efficient, low-maintenance designs where service can be done in a matter of minutes instead of hours.
- Many customisation possibilities
- Removable cooling unit for easy service
- Fast pull-down of temperature
- Adjustable plate shelves
- White LED lighting
- Skinplate exterior/interior
- Digital controller and temperature display
- Ventilated cooling
- Optional lock
Choose external Dimension (WxDxH)
- Next day delivery available on product
- Unpack & Position£ 40.00
- Remove & Dispose£ 130.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight80.5 / 72.5 kg
- Bottles 330 ml107 pcs
- Bottles 500 ml PET110 pcs
- Cans 330 ml180 pcs
- Cans 500 ml145 pcs
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Volume138 / 124 l
Design and Material
- Exterior FinishAnthracite RAL 7021
- Interior FinishSilver
- Bottom Shelf Dimensions395 x 460
- Door Number & Type1 hinged solid door
- Shelves Number & Type2 adjustable
- Max load on Shelves180 kg/m²
- Shelf ColorSilver
- Shelf Dimensions370 x 428 mm
- Feet / LegsAdjustable Feet
- Interior LightLED
- LockFactory Option
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- Refrigerant Charge80 g
- RefrigerantR290
- Thermometer
Power and Consumption
- Input Power200 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level41 dB(A)
Dimensions
- External Dimension (WxDxH)770 x 560 x 820 mm
- Packed Dimension (WxDxH)825 x 610 x 970 mm
- 40ft Container Load 112 pcs
- GTIN / EAN5708181755096
- Product Group - Delivery servicesGroup 3
- Internal Dimension (WxDxH)395 x 470 x 735 mm
Downloads
Description
Spare parts
- 00Item no. 71060SFK/SCL-MU+ R
- 02Item no. 68958Thermostat Dixell XR02CX
- 03Item no. 68959Sensor Dixell 1.5 meters
- 04Item no. 69005Fan motor 7 Watt condenser Energetic Plus+
- 05Item no. 69004Fan motor 120 x 120 Energetic Plus+
- 06Item no. 69006Transformer 50W
- 08Item no. 68992LED strip 60 cm white
- 09Item no. 68966Adjustable foot, adjustable from the inside
- 10Item no. 68987Complete door SCL L/R including door seal
- 11Item no. 68995Door seal SCL (glass) door
- 12Item no. 69007Hinge SCL top L and R
- 13Item no. 68965Hinge bush 6mm
- 14Item no. 69009Hinge SCL bottom L
- 15Item no. 69008Hinge SCL bottom R
- 16Item no. 68960Fan motor 120 x 120 x 38 axial
- 17Item no. 68989Bottle platform SCL
- 18Item no. 69345Rack support
- 19Item no. 68990Intermediate platform (between 2 full platforms)
- 20Item no. 68974Machine front SFK/SCL RIGHT
