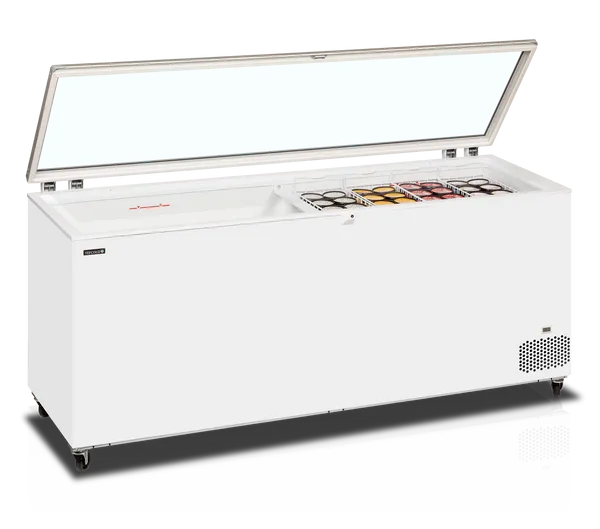

Hinged Glass Lid Chest Freezer
ST701
Item no.: 48869(Substitution for 20144 ST700)
Brand: TEFCOLD
- Flat hinged glass lid
- Static cooling
- Castors
- Lock
- Digital temperature display
- Defrost drain
- Next day delivery available on product
- Unpack & Position£ 37.00
- Remove & Dispose£ 72.00
Check Delivery Options and Services
Technical specifications
Measures and Content
- Gross / Net Weight109 / 103 kg
- Temperature Range-24 to -14 °C
- Climate Class4
- Gross / Net Volume670 / 620 l
Design and Material
- Exterior FinishWhite
- Interior FinishWhite painted steel
- Castors4 double castors
- LockNo
- Lid Number & Type1 hinged tempered glass lid
- Basket Number & Type1 Wire basket, white
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingStatic
- Type of DefrostManual
- RefrigerantR290
- Refrigerant Charge125 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No1764858
- Max Ambient30°C at 55% RH
- Annual Energy Consumption1336 kWh/year
- Energy Consumption3.66 kWh/24h
- EEI48.6 %
- Power13 Amp
- Input Power292 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- External Dimension (WxDxH)2055 x 720 x 920 mm
- Packed Dimension (WxDxH)2145 x 750 x 1000 mm
- 40ft Container Load 32 pcs
- GTIN / EAN5708181731212
- Product Group - Delivery servicesGroup 2
- Internal Dimension (WxDxH)1930 x 510 x 655 mm
Downloads
Description
Spare parts
- 01Item no. 13069Glass Lid
- 02Item no. 55741Glass for Lid
- 03
Item no. 13052Corner Plastic For Lid Left - 04
Item no. 13053Corner Plastic For Lid Right - 05Item no. 12638Gasket White
- 07Item no. 41214Compressor EMBRACO NEU 2140 U CSR
- 08Item no. 54349Fan Motor
- 09Item no. 34974Fan Motor Foot Sheet H=55mm
- 10
Item no. 13426Evaporator Fan Blade 190/28° - 11Item no. 55072Condenser
- 14
Item no. 12935Spring Hinge - 15
Item no. 12943Spring Hinge Middle/Strong - 16
Item no. 13940Thermostat 077B1687 - 19
Item no. 11161Louvred Plate Back No/Screws - 20Item no. 13611Cable Clamp For Louvred Plate
- 21Item no. 11164Louvred Plate Side 505x250
- 22
Item no. 11465Drain Plug Outer White - 23
Item no. 11553Inner Drain Plug - 25
Item no. 13793Thermometer Digital White - 26Item no. 55738Wire Basket
- 27Item no. 15772Ice Scraper
- 28Item no. 55742Middle Crossbar
