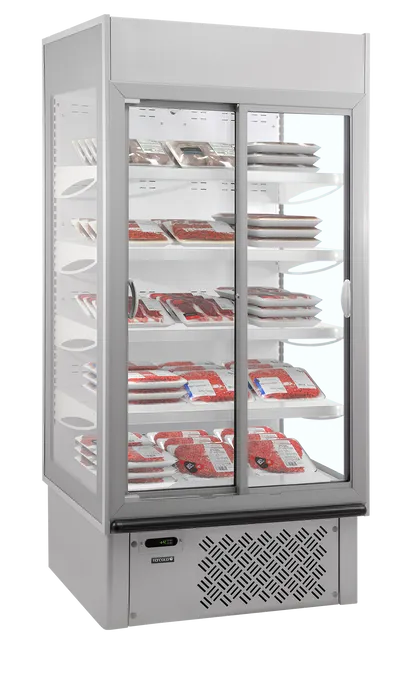

Wall Site Multideck With Doors

SUPER SUNNY10

Item no.: 19308

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Adjustable feet
  • LED interior light with switch
  • Digital controller and temperature display
  • Ticket strip included
  • Self closing doors with stay open feature for ease of loading
  • Low maintenance spiral condensor for increased efficiency

Technical specifications

Measures and Content

  • Total Display Area
    1.6
  • Temperature Range
    0 to +8 °C
  • Climate Class
    4
  • Gross / Net Weight
    226 / 216 kg
  • Gross / Net Volume
    685 / 601 l

Design and Material

  • Door Number & Type
    2 self-closing sliding glass doors
  • Door Reversible
    No
  • Shelves Number & Type
    4 white coated tilting
  • Shelf Color
    White
  • Max load on Shelves
    100 kg/m²
  • Feet / Legs
    4 adjustable feet
  • Exterior Finish
    Grey
  • Interior Finish
    White
  • Interior Light
    LED
  • Lock

Cooling and Functions

  • Type of Controller
    Electronic
  • Type of Cooling
    Ventilated
  • Type of Defrost
    Automatic
  • Refrigerant
    R290
  • Refrigerant Charge
    125 g
  • Thermometer

Power and Consumption

  • Energy Class
    C
  • Max Ambient
    30°C at 55% RH
  • Energy Consumption
    9.02 kWh/24h
  • Annual Energy Consumption
    3292 kWh/year
  • Input Power
    750 W
  • Voltage / Frequency
    220-240/50 V/Hz
  • Noise Level
    55 dB(A)

Dimensions

  • Internal Dimension (WxDxH)
    945 x 480 x 1380 mm
  • External Dimension (WxDxH)
    985 x 737 x 1987 mm
  • Packed Dimension (WxDxH)
    1090 x 760 x 2150 mm
  • 40ft Container Load
    33 pcs
  • GTIN / EAN
    5708181607210
  • Product Group - Delivery services
    Group 3

Downloads

Description

The Super Sunny is a sliding door multideck with a generous 5 tier display. Curved corners give the unit a sleek look, sliding doors help save energy while maintaining the visual appeal of a large display. Fully automatic and fan assisted, it ensures even cooling throughout the whole cabinet for drinks and sandwiches as well as milk and other dairy products.

Spare parts

  • 1
    Evaporator Fan Motor
    Item no. 13445Evaporator Fan Motor
  • 2
    Evaporator Fan 200x23°
    Item no. 13420Evaporator Fan 200x23°
  • 3
    Item no. 14320Evaporator
  • 4
    Item no. 14497Water Tray Evaporator
  • 6
    Evaporator Cover
    Item no. 10442Evaporator Cover
  • 7
    Fan Protection
    Item no. 13537Fan Protection
  • 9
    Item no. 12085Door Guide
  • 10
    Right Front Door
    Item no. 12384Right Front Door
  • 11
    Left Front Door
    Item no. 12369Left Front Door
  • 12
    Lock with keys
    Item no. 10703Lock with keys
  • 13
    Door Roller
    Item no. 12158Door Roller
  • 20
    Side Glass
    Item no. 10629Side Glass
  • 21
    Bracket Holder Back Profile
    Item no. 10497Bracket Holder Back Profile
  • 22
    Bracket Lower Glass
    Item no. 10498Bracket Lower Glass
  • 23
    Foot M12
    Item no. 14589Foot M12
  • 24
    Compressor Start Set
    Item no. 11841Compressor Start Set
  • 25
    Compressor NEK6213U R290 (Excl. start-set 11841)
    Item no. 11767Compressor NEK6213U R290 (Excl. start-set 11841)
  • 26
    Filter Entry 6.5 Out 6.5 Gr30
    Item no. 15737Filter Entry 6.5 Out 6.5 Gr30
  • 27
    Wire Condenser
    Item no. 14207Wire Condenser
  • 28
    Condenser Fan Motor
    Item no. 13374Condenser Fan Motor
  • 30
    Evaporating Water Tray
    Item no. 11514Evaporating Water Tray
  • 31
    Water Tray Pipe Coil
    Item no. 14549Water Tray Pipe Coil
  • 33
    Right Panel
    Item no. 11239Right Panel
  • 34
    Left Panel
    Item no. 11146Left Panel
  • 35
    Item no. 10847Bottom Panel
  • 36
    Thermostat Cover
    Item no. 13982Thermostat Cover
  • 37
    Grill
    Item no. 11116Grill
  • 38
    Bumper Ending
    Item no. 10161Bumper Ending
  • 39
    Bumper Plug
    Item no. 10166Bumper Plug
  • 40
    Bumper
    Item no. 10134Bumper
  • 41
    Item no. 15079Shelf Bracket Rail
  • 42
    Right Bracket Shelf
    Item no. 15005Right Bracket Shelf
  • 43
    Left Bracket Shelf
    Item no. 14945Left Bracket Shelf
  • 45
    Item no. 14979Price Holder Profile
  • 46
    Bottom Shelf
    Item no. 14881Bottom Shelf
  • 47
    LED Lamp 12W L1200 24V
    Item no. 15560LED Lamp 12W L1200 24V
  • 48
    Power Supply LED 24V
    Item no. 15673Power Supply LED 24V
  • 49
    Relay
    Item no. 13699Relay
  • 50
    Switch
    Item no. 13765Switch
  • 51
    Digital Thermostat EV3X21N7
    Item no. 13858Digital Thermostat EV3X21N7
  • 52
    Probe NTC L=2000 Pvc
    Item no. 13898Probe NTC L=2000 Pvc
  • 53
    Probe NTC L=3000 Blue
    Item no. 13900Probe NTC L=3000 Blue
  • 55
    Evaporator Tray Right/Left
    Item no. 11531Evaporator Tray Right/Left
  • 99
    Condenser Fan 254x27°
    Item no. 13350Condenser Fan 254x27°
